Description:

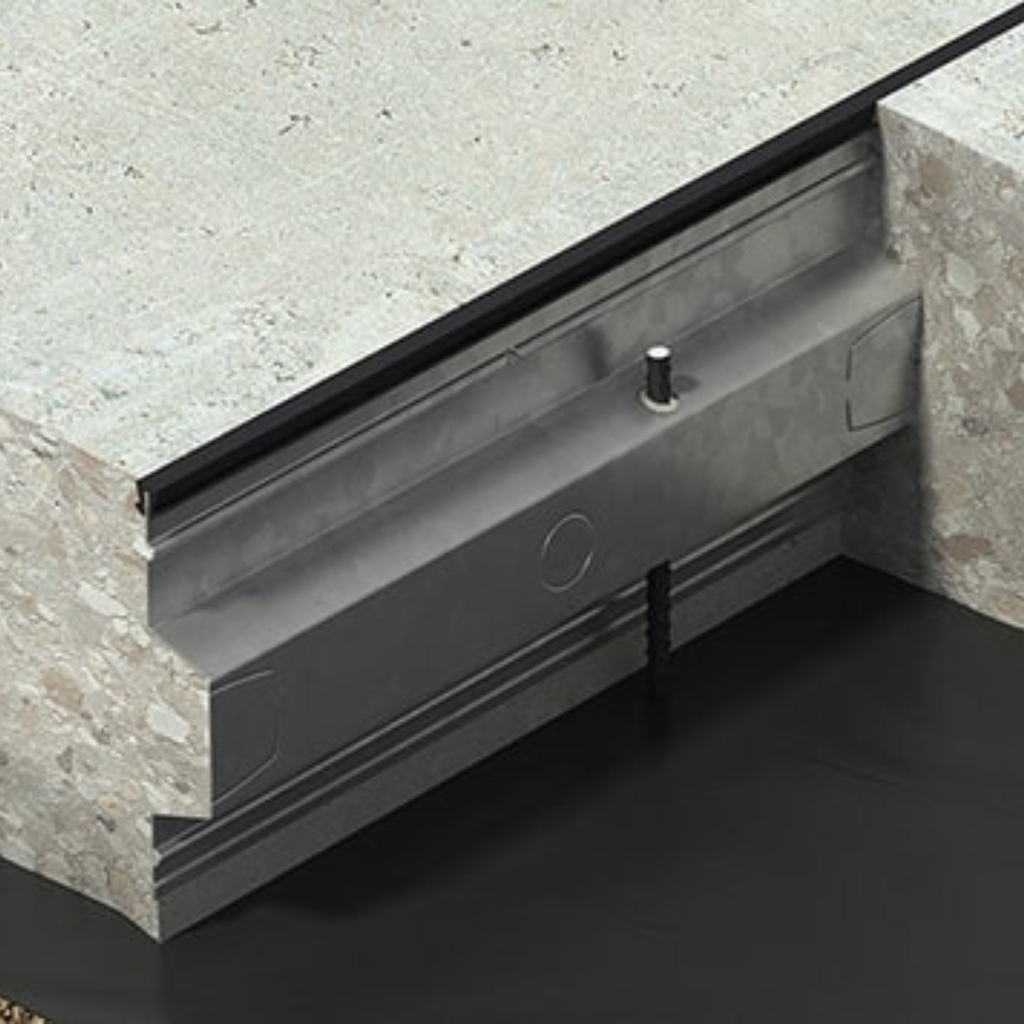

Conolly key joints are a continuous pour solution for contraction joints in slab on ground applications. They are a roll-formed galvanised steel section used as a leave-in-place formwork to control shrinkage induced cracking. The profile is fixed in place using the patented peg and wedge system.
· Enables continuous pours
· Knockouts to accommodate a range of dowel sizes
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
· Minimise liability risks from slip and trip claims
Description:
Slab thickness:150mm
Profile heights: 135mm
Length: 3m
Knock-out holes: Knock-out holes to suit UDS sleeves at 150mm centres.
Material: Galvanised Z275
Pegs & wedges: Pack of 4 per 3m length
Peg dimensions: 8.5mm x 390mm
Shipping:
**Due to the bulky nature of this product, freight costs may vary depending on your location, and the shipping charges calculated at checkout may not reflect the final amount. For an accurate quote, including shipping, please contact us directly at P: 1300 903 607.**
Description:
Conolly key joints are a continuous pour solution for contraction joints in slab on ground applications. They are a roll-formed galvanised steel section used as a leave-in-place formwork to control shrinkage induced cracking. The profile is fixed in place using the patented peg and wedge system.
· Enables continuous pours
· Knockouts to accommodate a range of dowel sizes
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
· Minimise liability risks from slip and trip claims
Description:
Slab thickness:150mm
Profile heights: 135mm
Length: 3m
Knock-out holes: Knock-out holes to suit UDS sleeves at 150mm centres.
Material: Galvanised Z275
Pegs & wedges: Pack of 4 per 3m length
Peg dimensions: 8.5mm x 390mm
Shipping:
**Due to the bulky nature of this product, freight costs may vary depending on your location, and the shipping charges calculated at checkout may not reflect the final amount. For an accurate quote, including shipping, please contact us directly at P: 1300 903 607.**
Connolly Keyjoint 150mm x 3.0m incl. stakes
Product Code : KJ150
U.o.M : Ea
$ 49.78
$ 49.78
(ex.GST)
$ 49.78
