Includes:
1 x 125mm x 3.0m Expansion Joint
7 x R16 x 450mm galvanised Dowel Bars
7 x 16mm x 225mm Purple Dowel Sleeves
1 x Pack of 4 pegs and wedges.
Description:

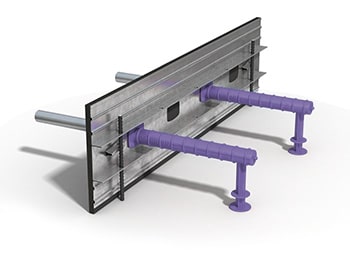

The Connolly expansion joint is a continuous pour solution for expansion joints in slab on ground application. The straight profile guarantees that the load is transferred through the dowels only. These expansion joints are a roll-formed steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.
(includes dowels and sleeves.)
Features:
· Enables continuous pours
· Allows up to 10mm expansion
· Provides expansion capacity over the full depth of the slab
· Twist-fix feature provides alignment of dowels for unhindered slab movement
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
Specifications:
Size: 125mm x 3m
Slab thickness: 125mm
Profile height: 123mm
Foam height: 125mm
Length: 3m
Dowel diameter: 16mm
Dowel length: 450mm
No
of dowels / centres: 7/ 450
Includes:
1 x 125mm x 3.0m Expansion Joint
7 x R16 x 450mm galvanised Dowel Bars
7 x 16mm x 225mm Purple Dowel Sleeves
1 x Pack of 4 pegs and wedges.
Description:
The Connolly expansion joint is a continuous pour solution for expansion joints in slab on ground application. The straight profile guarantees that the load is transferred through the dowels only. These expansion joints are a roll-formed steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.
(includes dowels and sleeves.)
Features:
· Enables continuous pours
· Allows up to 10mm expansion
· Provides expansion capacity over the full depth of the slab
· Twist-fix feature provides alignment of dowels for unhindered slab movement
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
Specifications:
Size: 125mm x 3m
Slab thickness: 125mm
Profile height: 123mm
Foam height: 125mm
Length: 3m
Dowel diameter: 16mm
Dowel length: 450mm
No
of dowels / centres: 7/ 450
Connolly Expanda Joint System 125mm x 3m, Package incl 1 pack of Peg & Wedges, 7 x R16x450mm Dowels & 1x bag of 7 Purple Sleeves
Product Code : EXJ12530SY
U.o.M : Ea
$ 139.69
$ 139.69
(ex.GST)
$ 139.69
