Includes:
1 x 125mmx3m(L) expansion joint
1 x pack (4) stakes/ wedges
Description:

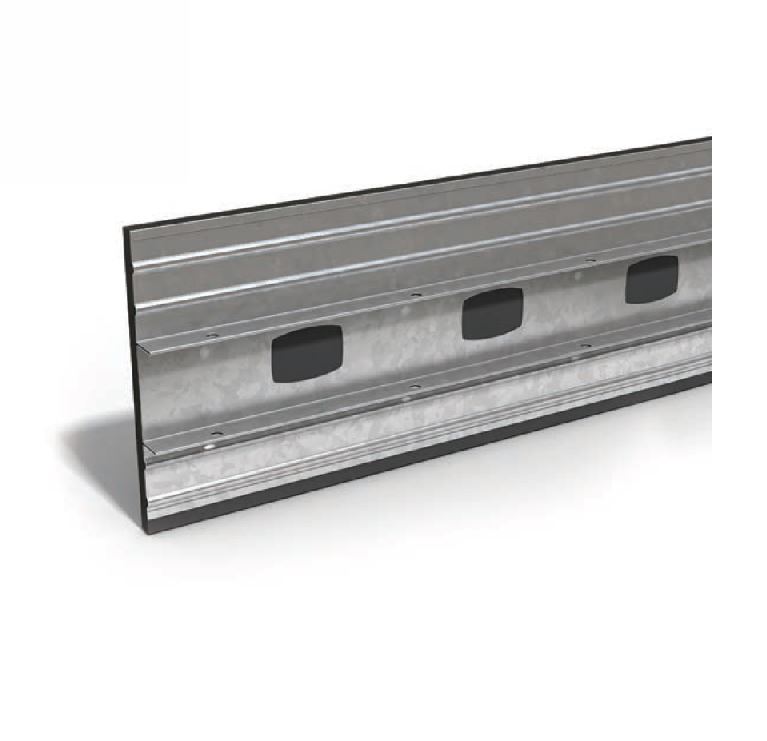

The Connolly expansion joint is a continuous pour solution for expansion joints in slab on ground application. The straight profile guarantees that the load is transferred through the dowels only. These expansion joints are a roll-formed steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.
(includes dowels and sleeves.)
Features:
· Enables continuous pours
· Allows up to 10mm expansion
· Provides expansion capacity over the full depth of the slab

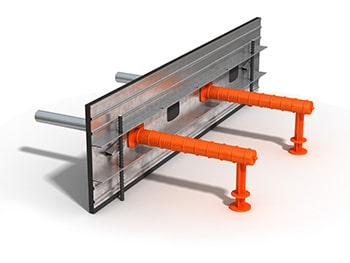

· Twist-fix feature provides alignment of dowels for unhindered slab movement
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
Specifications:
Size: 125mm x 3m
Slab thickness: 125mm
Profile height: 123mm
Foam height: 125mm
Length:
3m
Includes:
1 x 125mmx3m(L) expansion joint
1 x pack (4) stakes/ wedges
Description:
The Connolly expansion joint is a continuous pour solution for expansion joints in slab on ground application. The straight profile guarantees that the load is transferred through the dowels only. These expansion joints are a roll-formed steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.
(includes dowels and sleeves.)
Features:
· Enables continuous pours
· Allows up to 10mm expansion
· Provides expansion capacity over the full depth of the slab
· Twist-fix feature provides alignment of dowels for unhindered slab movement
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
Specifications:
Size: 125mm x 3m
Slab thickness: 125mm
Profile height: 123mm
Foam height: 125mm
Length:
3m
Connolly Expanda Keyjoint 125mm x 3m w/- 10mm PE Cross Linked Closed Cell Foam Backing
Product Code : EXJ12530
U.o.M : Ea
$ 65.50
$ 65.50
(ex.GST)
$ 65.50
