Includes:
1 x 100mm x 3.0m Expansion Joint
9 x R12 x 300mm galvanised Dowel Bars
9 x 12mm x 150mm Green Dowel Sleeves
1 x Pack of 4 pegs and wedges.
Description:

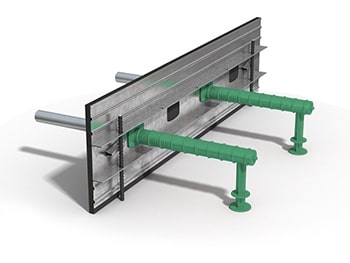

The Connolly expansion joint is a continuous pour solution for expansion joints in slab on ground application. The straight profile guarantees that the load is transferred through the dowels only. These expansion joints are a roll-formed steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.
(includes dowels and sleeves.)
Features:
· Enables continuous pours
· Allows up to 10mm expansion
· Provides expansion capacity over the full depth of the slab
· Twist-fix feature provides alignment of dowels for unhindered slab movement
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
Specifications:
Size: 100mm x 3m
Slab thickness: 100mm
Profile height: 87.5mm
Foam height: 100mm
Length: 3m
Dowel diameter: 12mm
Dowel length: 3m
No
of dowels / centres: 9 / 335mm
Shipping:
**Due to the bulky nature of this product, freight costs may vary depending on your location, and the shipping charges calculated at checkout may not reflect the final amount. For an accurate quote, including shipping, please contact us directly at P: 1300 903 607.**
Includes:
1 x 100mm x 3.0m Expansion Joint
9 x R12 x 300mm galvanised Dowel Bars
9 x 12mm x 150mm Green Dowel Sleeves
1 x Pack of 4 pegs and wedges.
Description:
The Connolly expansion joint is a continuous pour solution for expansion joints in slab on ground application. The straight profile guarantees that the load is transferred through the dowels only. These expansion joints are a roll-formed steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.
(includes dowels and sleeves.)
Features:
· Enables continuous pours
· Allows up to 10mm expansion
· Provides expansion capacity over the full depth of the slab
· Twist-fix feature provides alignment of dowels for unhindered slab movement
· Patented wedge fixing mechanism allows fast and accurate height adjustment
· Additional stiffening ribs to ensure straighter joints
· Galvanised coating for corrosion protection
· Can be used to screed off which makes getting the right level quick and easy
Specifications:
Size: 100mm x 3m
Slab thickness: 100mm
Profile height: 87.5mm
Foam height: 100mm
Length: 3m
Dowel diameter: 12mm
Dowel length: 3m
No
of dowels / centres: 9 / 335mm
Shipping:
**Due to the bulky nature of this product, freight costs may vary depending on your location, and the shipping charges calculated at checkout may not reflect the final amount. For an accurate quote, including shipping, please contact us directly at P: 1300 903 607.**
Connolly Expanda Joint System 100mm x 3m, Package incl 1 pack of Peg & Wedges, 9 x R12x300mm Dowels & 1x bag of 9 Green Sleeves
Product Code : EXJ10030SY
U.o.M : Ea
$ 94.99
$ 94.99
(ex.GST)
$ 94.99
